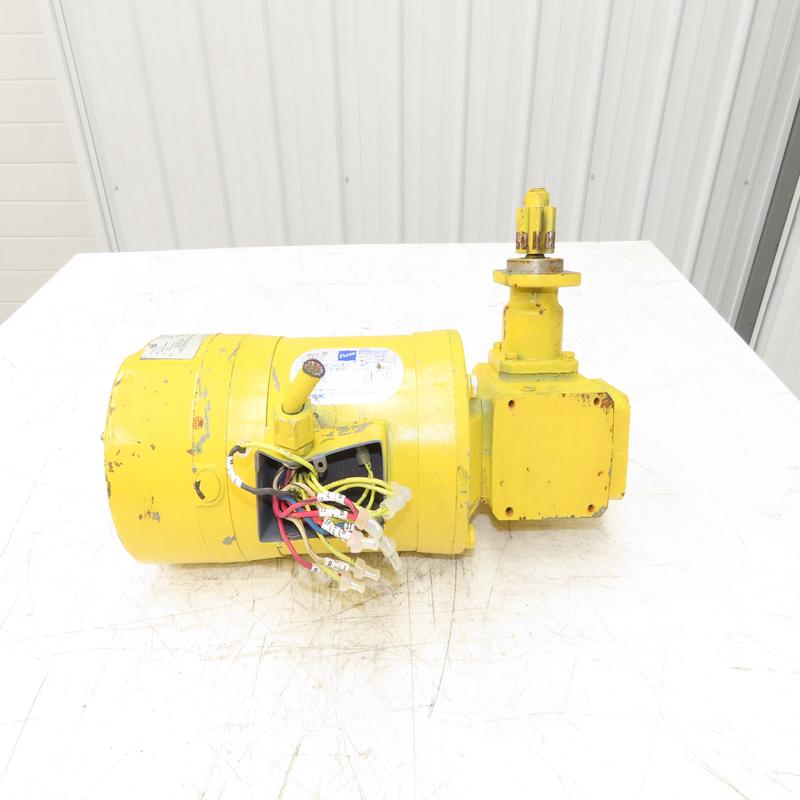

Doerr LR22132 Crane Duty Gear Motor w/Brake 15:1/115rpm 1/2Hp 230/460V D56CFC
Gear Ratio: 15:1Output Speed: 115Shaft Diameter: 5/8\" with 7-tooth drive sprocket installedFlange Size: 56COutput Torque: 277 In-LbMotor Brand and Model: Doerr LR22132Motor Specs: 1/2Hp 1725 RPM 230/460V 3PH 30 Min Crane duty ratingGearbox Brand and Model: Doerr Type MBQBrake Model...
SKU :
- FN1928232846
Categories :
- Gear Ratio: 15:1
- Output Speed: 115
- Shaft Diameter: 5/8\” with 7-tooth drive sprocket installed
- Flange Size: 56C
- Output Torque: 277 In-Lb
- Motor Brand and Model: Doerr LR22132
- Motor Specs: 1/2Hp 1725 RPM 230/460V 3PH 30 Min Crane duty rating
- Gearbox Brand and Model: Doerr Type MBQ
- Brake Model and Specs: Stearns 1-055-501-00-BQF 230/460V 3PH 1.5 In-Lb Torque
- In good used condition, untested.
